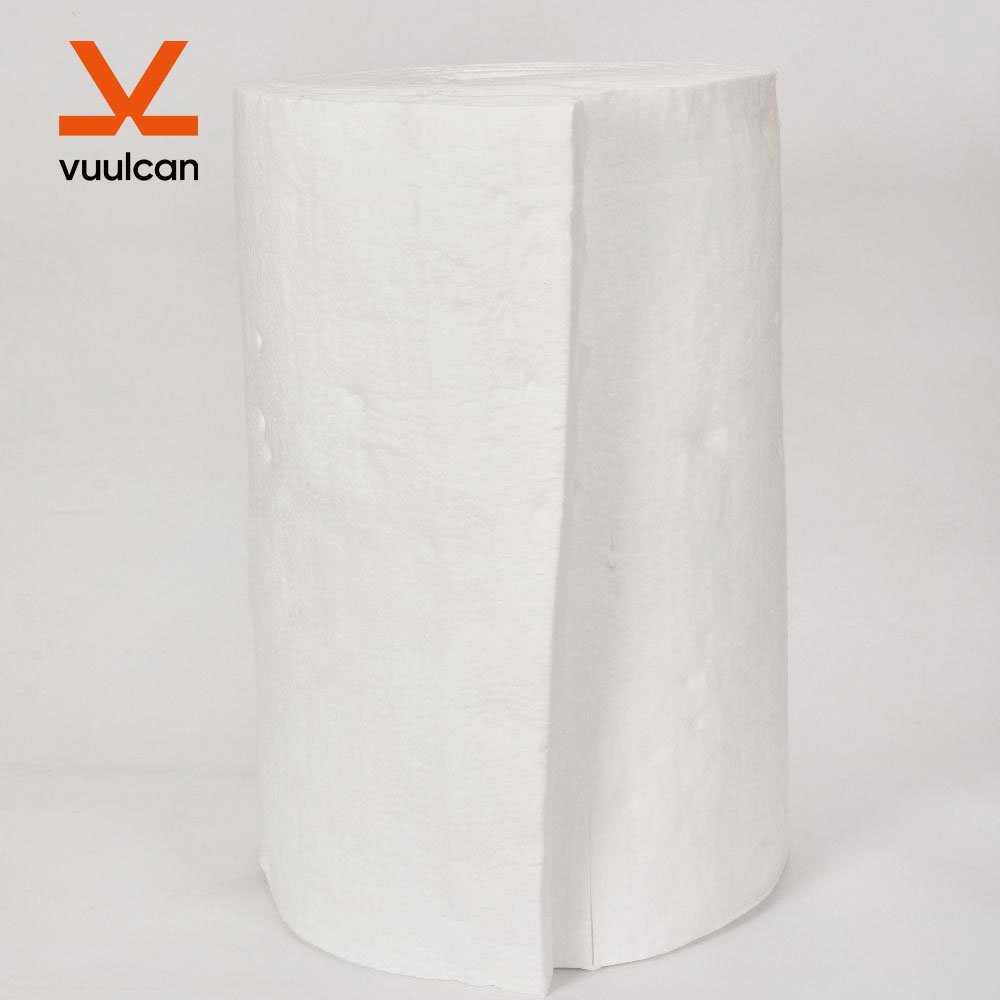

Description of Ceramic Fiber Blanket:
The ceramic fiber blanket is of standard size and integrates fire prevention, heat insulation and heat preservation. It can maintain good tensile strength, toughness and fiber structure even after long-term use in neutral and oxidizing atmospheres. It features low heat capacity, low thermal conductivity, excellent chemical stability, excellent thermal stability, and no powdering at working temperatures.
Technique Data of Ceramic Fiber Blanket:
| Item | Specification | |||
| STD | HP | HA | HZ | |
| Al2O3 % | 44~46 | 47~49 | 52~55 | 39~41 |
| Al2O3+SiO2 % | 98 | 99 | 99 | / |
| Al2O3+SiO2+ZrO2 % | / | / | / | 99 |
| ZrO2 % | / | / | / | 15~17 |
| Fe2O3 % | 0.5 | 0.2 | 0.2 | 0.2 |
| K2O+Na2O % | 0.2 | 0.2 | 0.2 | 0.2 |
| Density, kg/m3 | 64~140 | 64~140 | 64~140 | 64~140 |
| Permanent Linear Shrinkage, % After 24h | ≤-3 1050℃ | ≤-3 1100℃ | ≤-3 1100℃ | ≤-3 1300℃ |
| Thermal Conductivity, W/(m·K) Density 128kg/m3 | 0.14 800℃ | 0.14 800℃ | 0.13 1000℃ | 0.14 1000℃ |
| 0.17 1050℃ | 0.18 1100℃ | 0.19 1200℃ | 0.21 1300℃ | |
| Tensile Strength, MPa 128kg/m3 | 0.04 | 0.04 | 0.04 | 0.04 |
| Max Working Temperature, ℃ | 1200 | 1260 | 1350 | 1400 |
